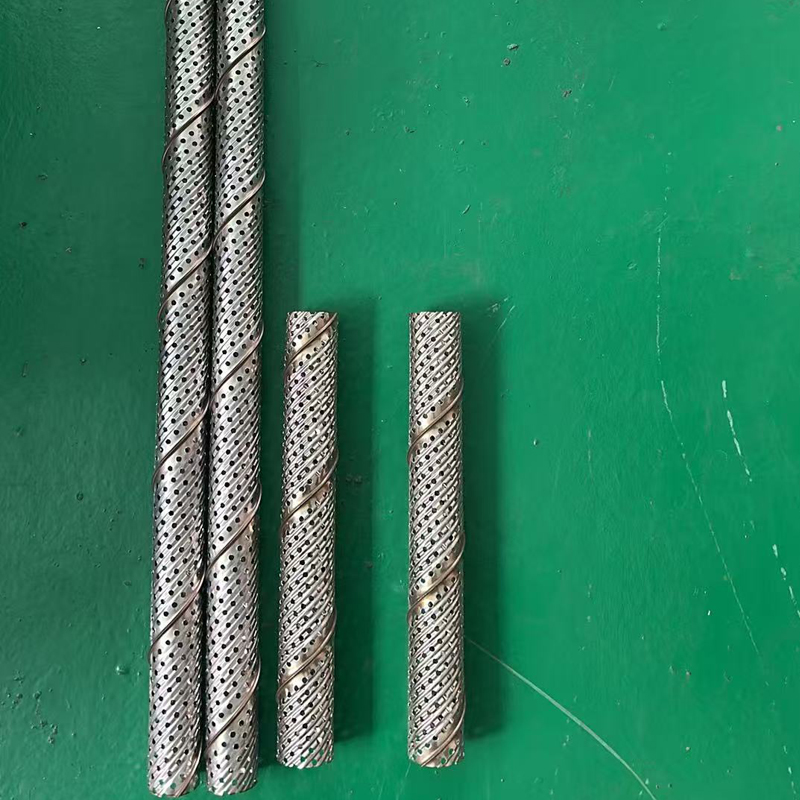

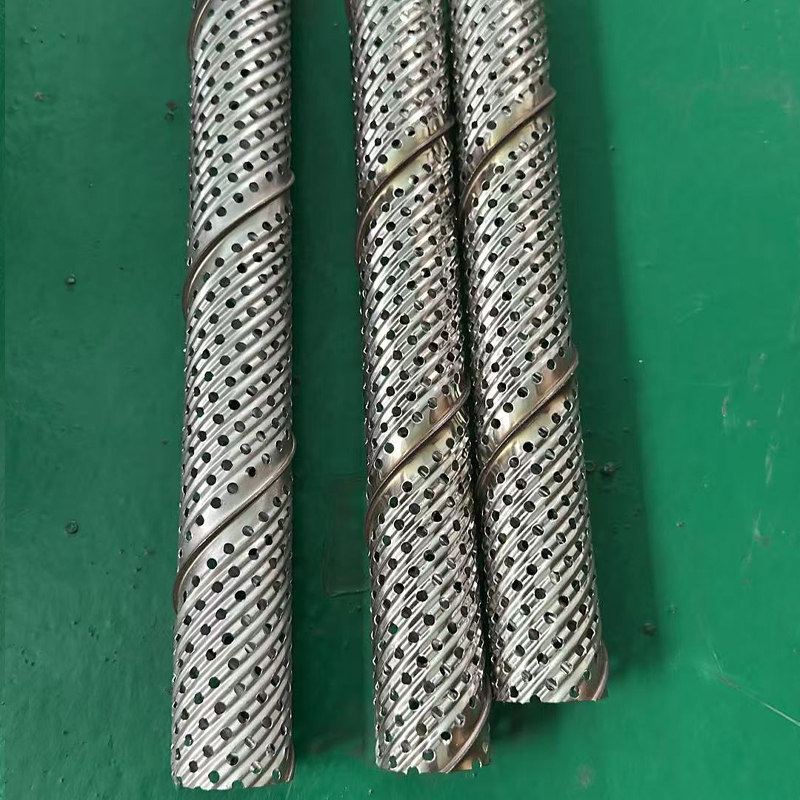

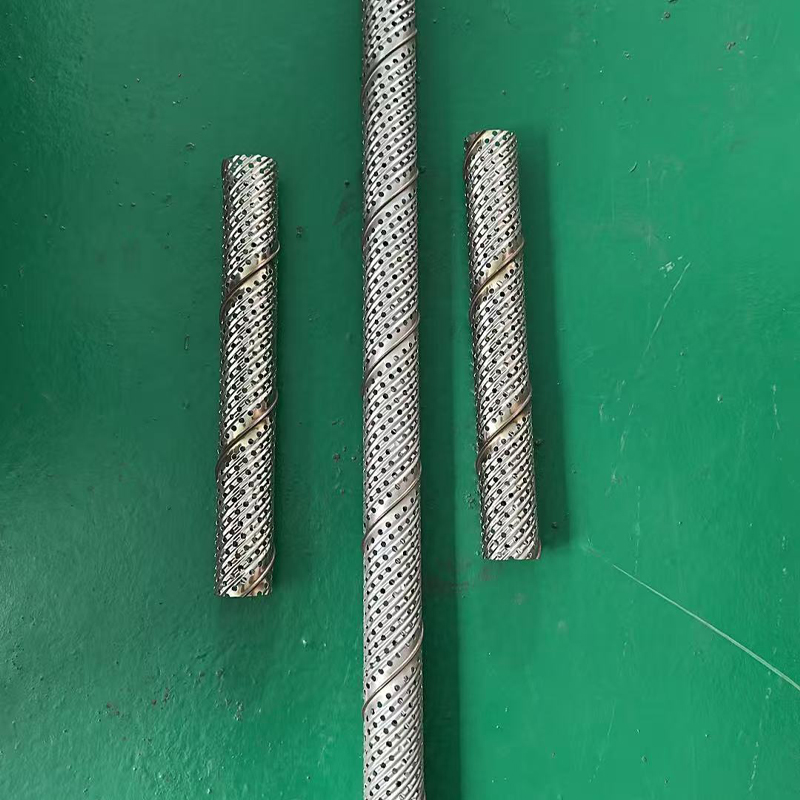

Wire wound filter core frames are precision-engineered support structures used in string wound and wire wound filter cartridges. These core frames provide the mechanical strength and structural stability required for effective filtration performance while maintaining optimal flow characteristics throughout the filtration process.
At Xintan Filter, we manufacture high-quality wire wound filter core frames using premium stainless steel materials and advanced welding technology. Our products are widely used in water treatment systems, chemical processing plants, food and beverage production, pharmaceutical manufacturing, oil and gas filtration, and industrial process filtration applications.
A wire wound filter core frame serves as the internal support structure for wound filter cartridges. During manufacturing, filtration media such as polypropylene yarn, cotton yarn, fiberglass yarn, or other filter materials are wound around the core frame to create a deep filtration element capable of capturing suspended solids, particles, rust, and contaminants. The frame provides strength while allowing maximum flow through the filter element.
SS304 wire wound filter core frames provide excellent corrosion resistance and are suitable for general industrial filtration applications.
SS316 offers enhanced resistance to chemicals, saltwater, and corrosive environments, making it ideal for demanding industrial processes.
Low-carbon SS316L provides superior corrosion resistance and excellent weldability for specialized filtration systems.
Used as support cores in wound filter cartridges for municipal water treatment, industrial water filtration, and wastewater treatment systems.
Provides structural support for filtration elements used in chemical production and process filtration applications.
Suitable for filtration systems requiring hygienic stainless steel construction and reliable filtration performance.
Used in critical filtration processes where product purity and filtration efficiency are essential.
Applied in process filtration systems, lubricating oil filtration, and industrial fluid purification equipment.
| Parameter | Specification |
|---|---|
| Material | SS304, SS316, SS316L |
| Construction | Welded Wire Core Frame |
| Surface Finish | Polished, Pickled, Passivated |
| Diameter | Custom Available |
| Length | Custom Available |
| Application | Liquid & Gas Filtration |
| Customization | OEM & ODM Supported |
Wire wound filter cartridges rely on a strong internal frame to maintain their structure under operating pressure. Stainless steel core frames provide excellent compression resistance, durability, and compatibility with various winding materials. These support structures help improve filtration efficiency, extend filter service life, and ensure consistent performance in demanding environments.
Xintan Filter provides complete OEM and ODM manufacturing services for wire wound filter core frames. We can customize:
Our engineering team works closely with customers to develop customized filtration support solutions based on specific operating requirements.
Looking for high-quality wire wound filter core frames for industrial filtration systems? Contact Xintan Filter today to receive a customized solution designed for your filtration requirements.
