Spiral welded perforated filter core frames are high-strength support structures designed for filter cartridges, filtration elements, and industrial filtration systems. Manufactured from perforated metal sheets that are spiral welded into cylindrical forms, these core frames provide exceptional structural integrity, high flow capacity, and reliable support for filtration media.
At Xintan Filter, we manufacture premium spiral welded perforated filter core frames using stainless steel 304, stainless steel 316, and other corrosion-resistant materials. Our products are widely used in water treatment systems, dust collection equipment, hydraulic filtration, chemical processing, oil and gas filtration, and industrial filtration applications.

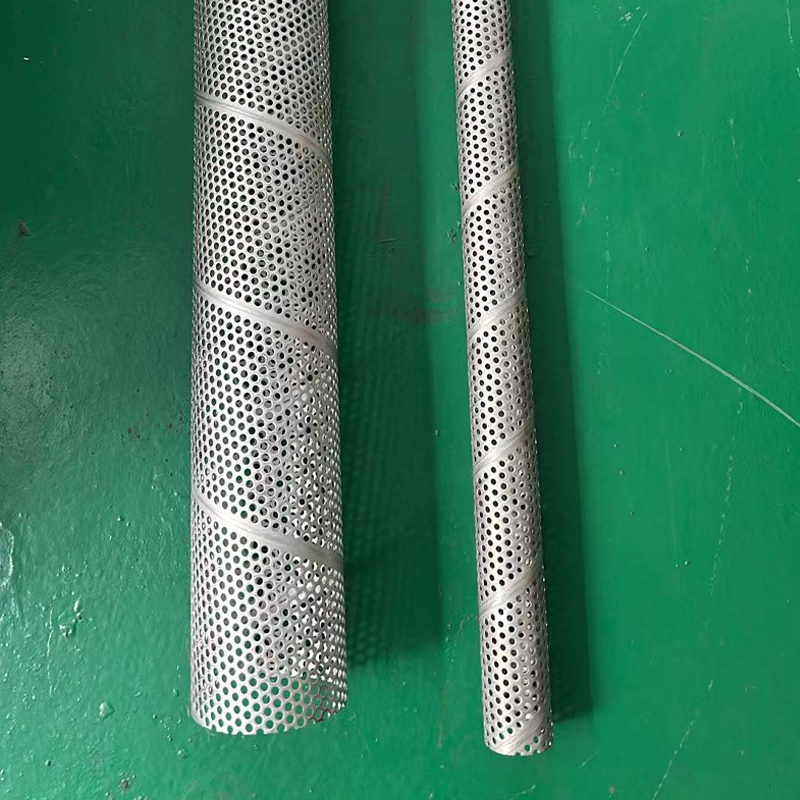

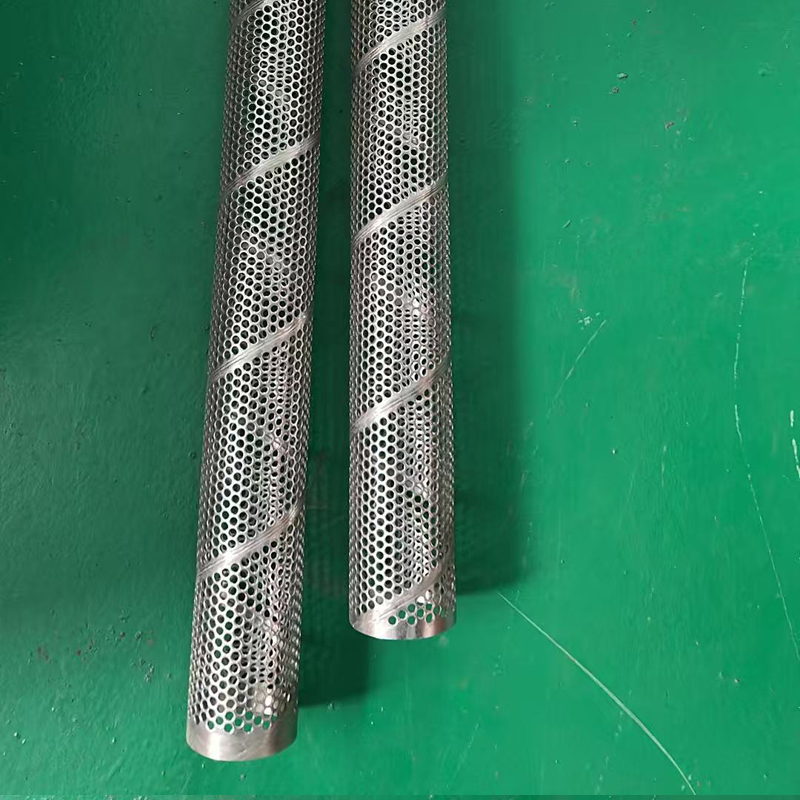

A spiral welded perforated filter core frame is a cylindrical support tube fabricated by rolling perforated metal sheets into a spiral configuration and welding them to create a durable filtration support structure. The perforated design allows maximum fluid flow while maintaining excellent mechanical strength.
These frames serve as inner or outer support cores for filter cartridges and filtration elements, helping prevent collapse under pressure while ensuring efficient filtration performance.
Provides excellent corrosion resistance and durability for general industrial filtration applications.
Offers superior resistance to chemicals, saltwater, and aggressive operating environments.
Ideal for applications requiring enhanced corrosion resistance and superior weldability.
A cost-effective solution for non-corrosive industrial environments.
Used as internal and external support structures for industrial filter cartridges and filtration elements.
Suitable for multimedia filters, activated carbon filters, and municipal water treatment equipment.
Provides structural support in dust collectors and air filtration systems.
Used in hydraulic oil filtration and industrial fluid purification applications.
Designed for filtration systems operating in demanding chemical environments.
Applied in process filtration, fluid separation, and industrial filtration equipment.
| Parameter | Specification |
|---|---|
| Material | SS304, SS316, SS316L, Carbon Steel |
| Construction | Spiral Welded Perforated Tube |
| Hole Pattern | Round, Square, Slotted, Custom |
| Diameter | Custom Available |
| Length | Custom Available |
| Thickness | Custom Available |
| Surface Finish | Polished, Pickled, Passivated |
| Customization | OEM & ODM Supported |
Looking for reliable spiral welded perforated filter core frames for industrial filtration applications? Contact Xintan Filter today for customized solutions tailored to your filtration system requirements.
What is a spiral welded perforated filter core frame?
A spiral welded perforated filter core frame is a perforated metal support structure used to strengthen filter cartridges and filtration elements.
Which materials are available?
SS304, SS316, SS316L, and carbon steel are commonly used materials.
Can spiral welded filter core frames be customized?
Yes, custom diameters, lengths, perforation patterns, and material grades are available.
What industries use spiral welded perforated filter core frames?
Water treatment, chemical processing, oil and gas, hydraulic filtration, dust collection, and industrial manufacturing industries commonly use these filtration support components.
